Neural Control and Learning of Simulated Hand Movements With an EMG-Based Closed-Loop Interface

Hodossy, Balint K; Farina, Dario

Neural Control and Learning of Simulated Hand Movements With an EMG-Based Closed-Loop Interface

Balint K Hodossy, Dario Farina

Imperial College London
Department of Bioengineering
ICL-Meta Wearable Neural Interfaces Research Centre

Paper Code arXiv

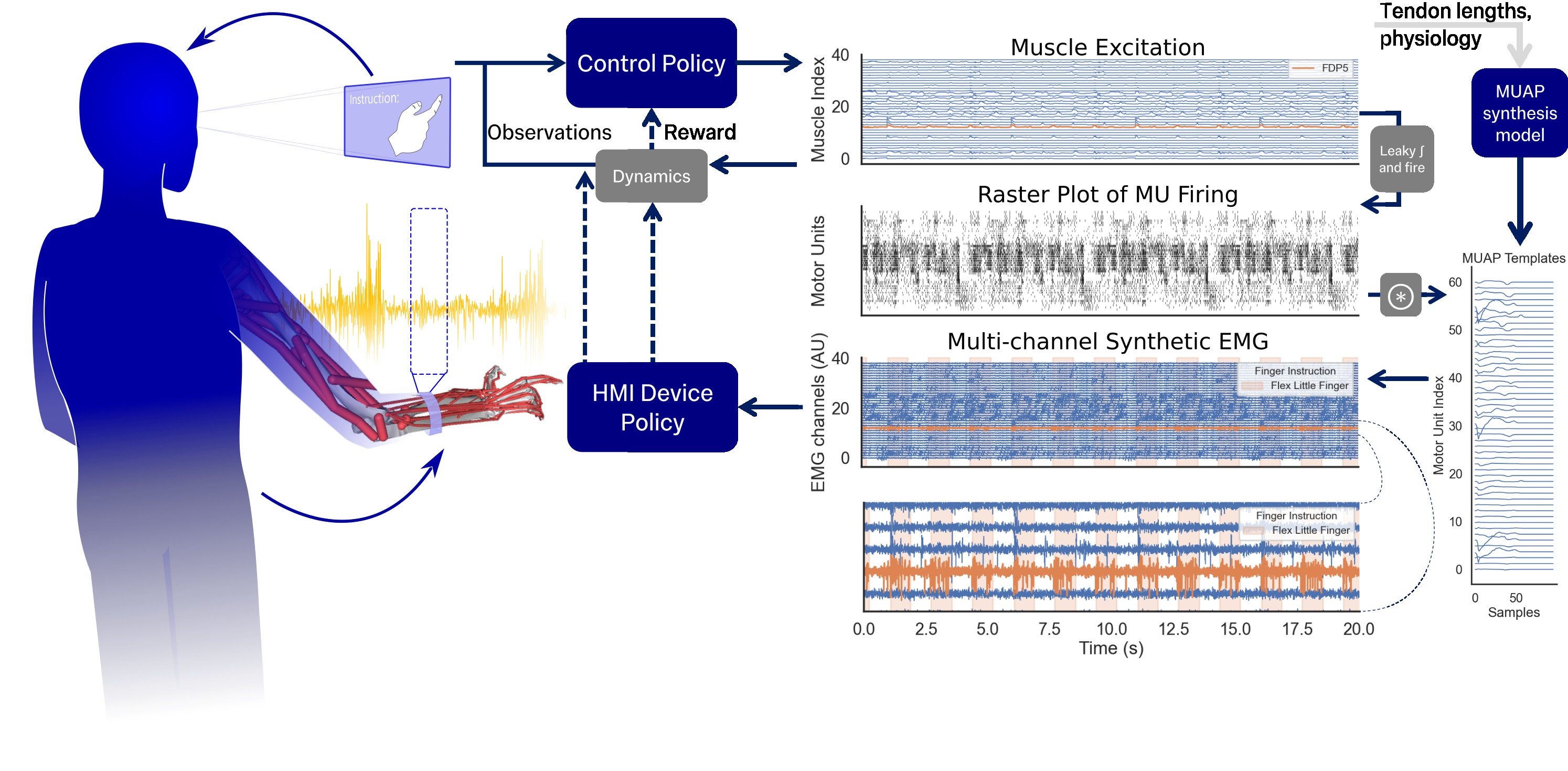

The online control policy of a physically simulated virtual user drives a pool of motor units, the firing activity of which generates concurrent synthetic EMG. We then integrate an EMG decoder, with which the user trains in a closed-loop to improve their control of the HMI.

Abstract

The standard engineering approach when facing uncertainty is modelling. Mixing data from a well-calibrated model with real recordings has led to breakthroughs in many applications of AI, from computer vision to autonomous driving. This type of model-based data augmentation is now beginning to show promising results in biosignal processing as well. However, while these simulated data are necessary, they are not sufficient for virtual neurophysiological experiments. Simply generating neural signals that reproduce a predetermined motor behaviour does not capture the flexibility, variability, and causal structure required to probe neural mechanisms during control tasks.

In this study, we present an in silico neuromechanical model that combines a fully forward musculoskeletal simulation, reinforcement learning, and sequential, online electromyography synthesis. This framework provides not only synchronised kinematics, dynamics, and corresponding neural activity, but also explicitly models feedback and feedforward control in a virtual participant. In this way, online control problems can be represented, as the simulated human adapts its behaviour via a learned RL policy in response to a neural interface. For example, the virtual user can learn hand movements robust to perturbations or the control of a virtual gesture decoder. We illustrate the approach using a gesturing task within a biomechanical hand model, and lay the groundwork for using this technique to evaluate neural controllers, augment training datasets, and generate synthetic data for neurological conditions.

Behaviours learnt with our framework

Finger gesturing task with concurrent EMG synthesis. The finger endpoints of the target gestures visualised as markers of different colours. This EMG does not affect the behaviour yet, but it serves as our pretraining data for the EMG decoder. The muscle control is closed loop, and reacts to recover from perturbations.

Online control with HMI in the loop. Instead of rewarding the agent for following the motion, it must modulate its EMG output to reach a desired gesture decoder output, classifying each finger as flexed/extended. The decoder's prediction is shown with the colour of the markers (green - flexed, grey - extended).

Our Approach

We leverage hardware acceleration for the physics (available from MuJoCo MJX), the reinforcement learning and the EMG synthesis. By compiling the simulation pipeline to GPU compatible operations, we can parallelise it to thousands of simultaneous environments. This allows collecting the necessary experience >100 times faster than through traditional frameworks used for MSk RL control.

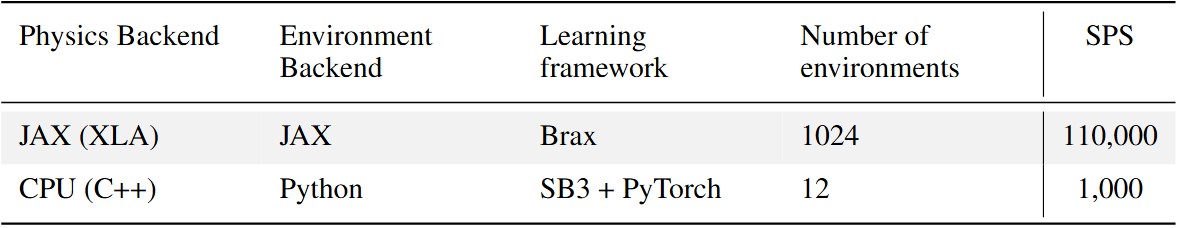

Table 1: Comparison of the simulation steps per second including the learning overheads between our closed-loop HMI environment and the original MyoHand learning environment.

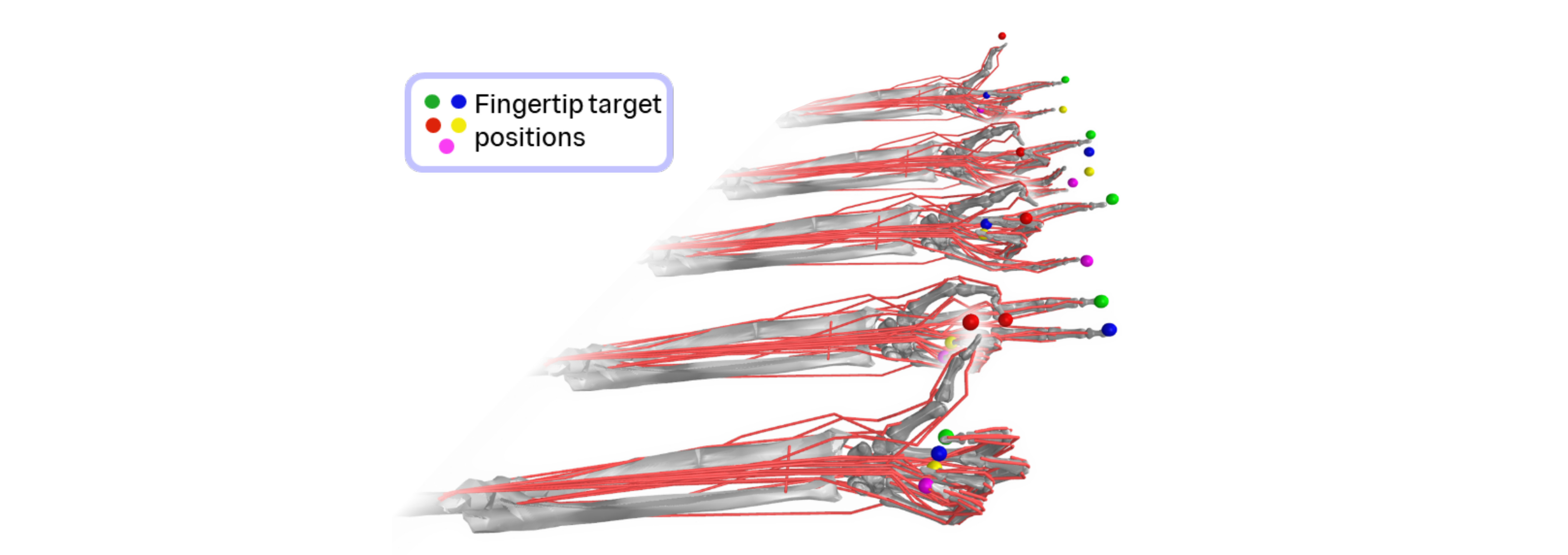

Illustration of the experience collection with parallel environments. Each environment is using a different projection of the reference motion templates, to prevent the memorisation of a single motion cycle.

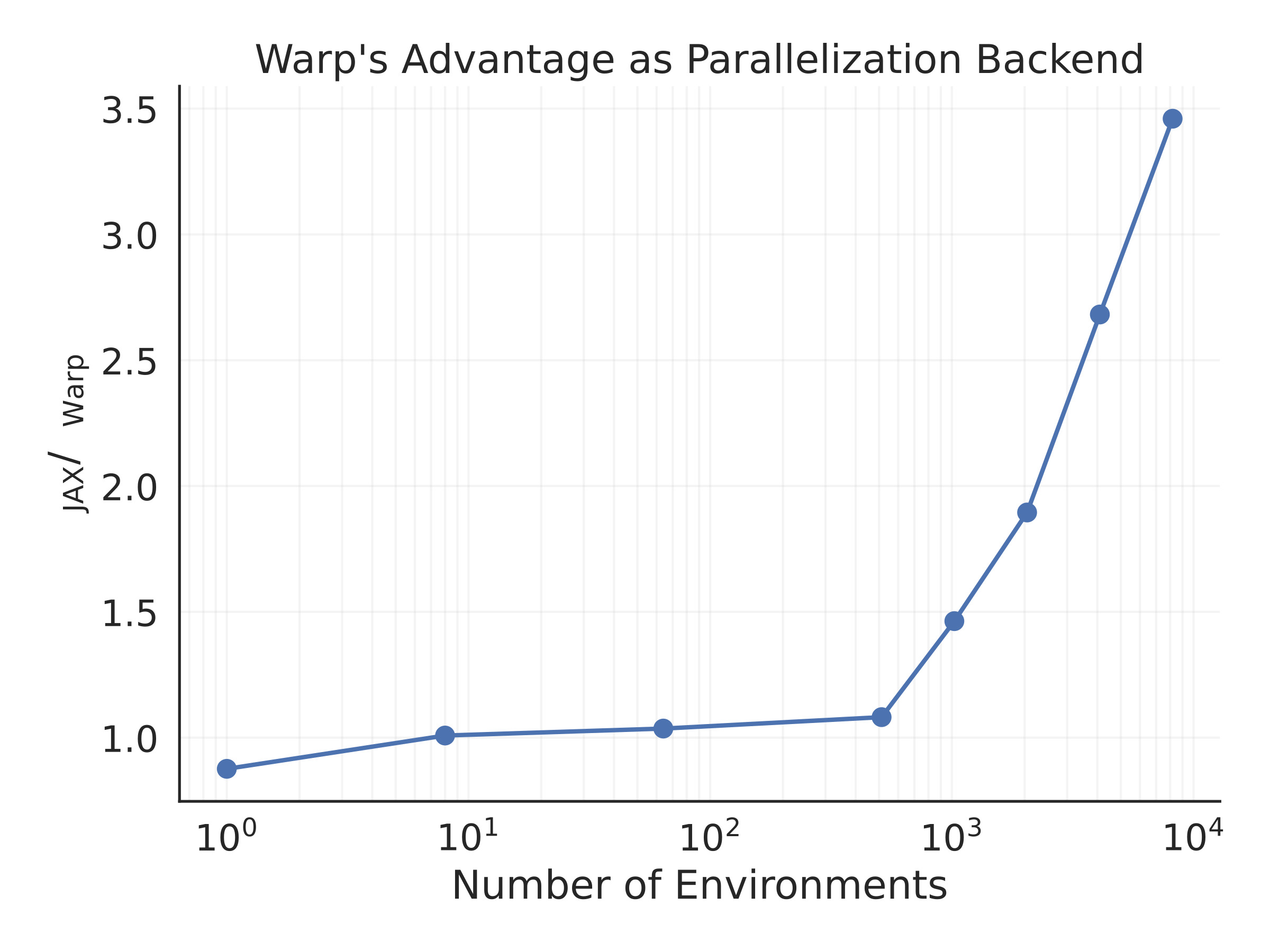

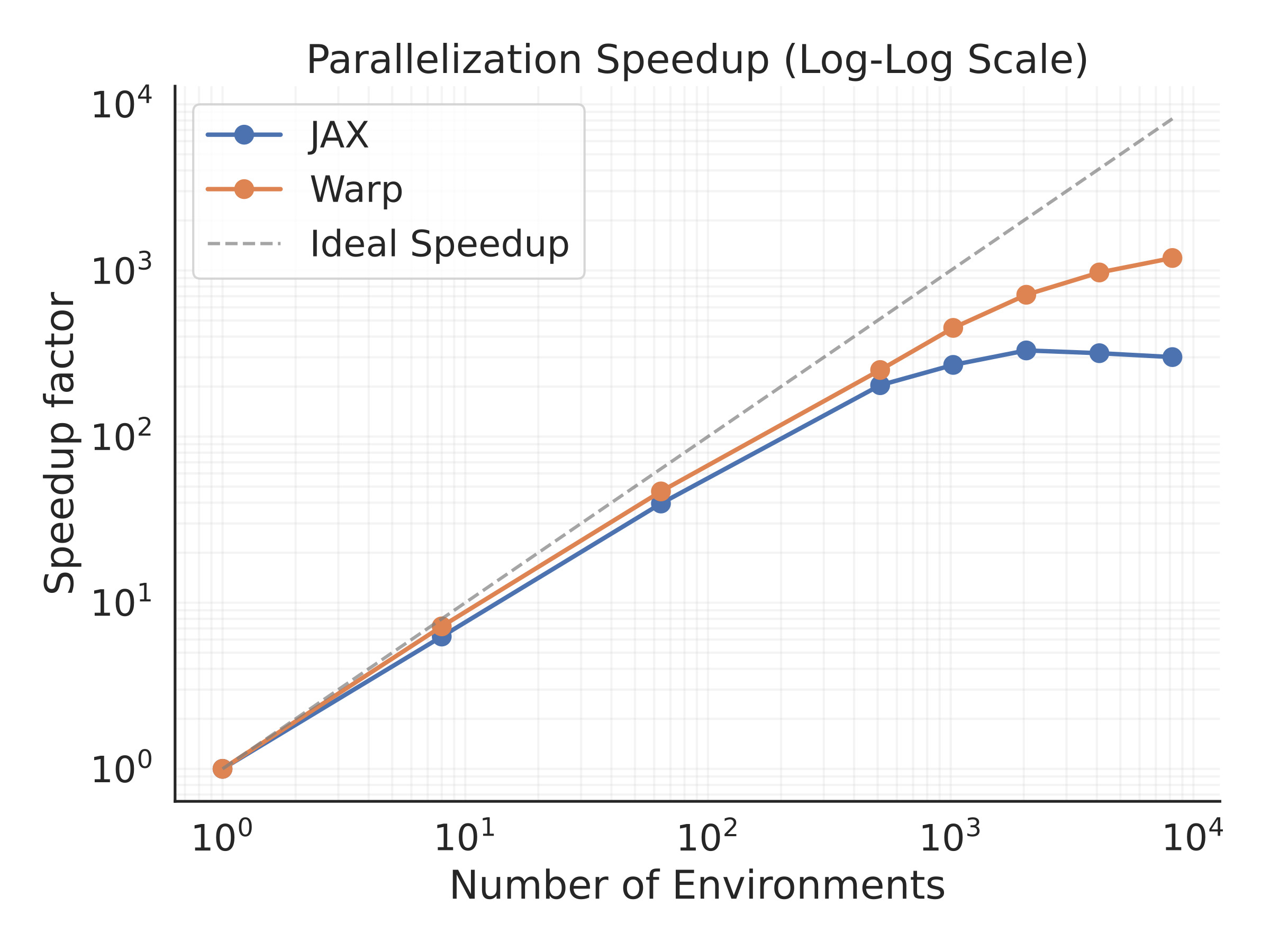

Comparison of the speedup gained with parallelisation using JAX and NVIDIA Warp implementations of the physics.

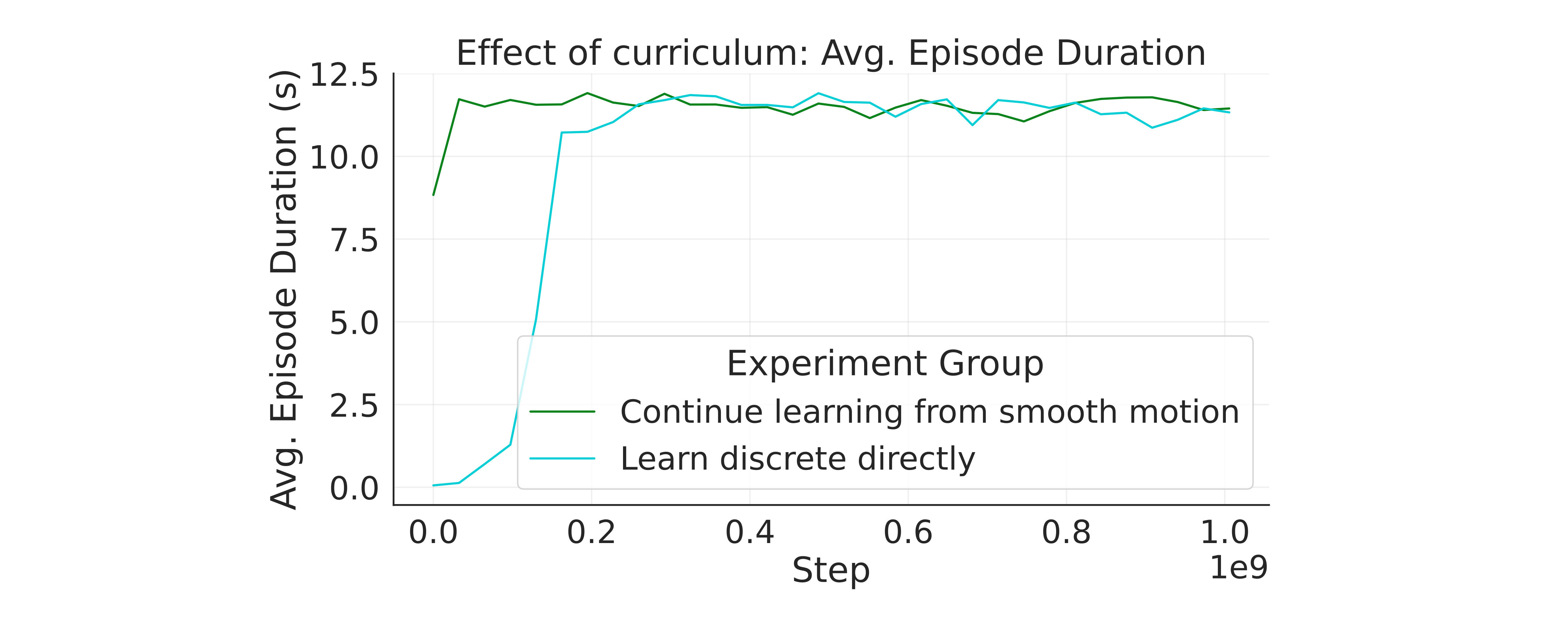

Before synthesising EMG, we pretrain a baseline policy in a gesturing task. Policies trained first on slower, more continuous motion are transferable to more sudden movements.

Closed-loop Control and Adaptation

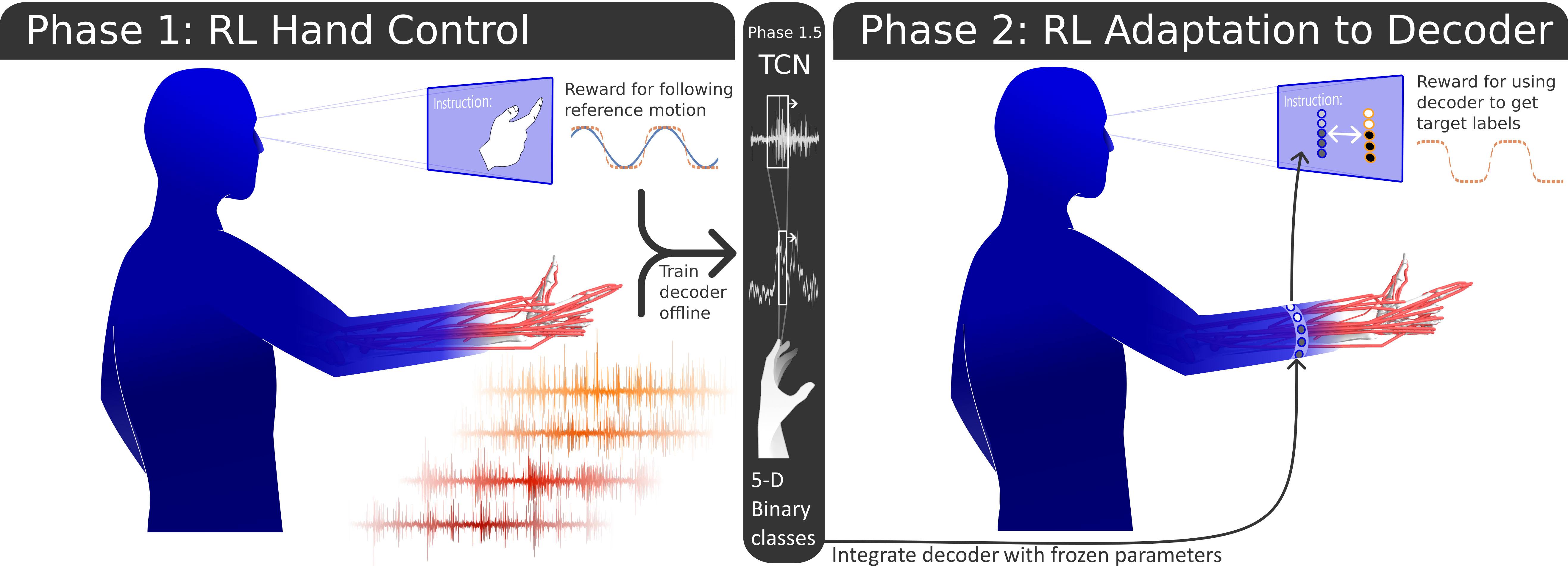

In the first phase of RL, a control policy is learnt to follow arbitrary gesture patterns. The synthetic signals from this agent are used to train a virtual subject-specific decoder offline using supervised learning. In the second phase, the agent adapts the motor behaviour to improve the performance with the fixed-parameter decoder, instead of still pursuing an imitation learning goal.

We demonstrate a model of adaptation and closed-loop control in a virtual user of a EMG-driven HMI. The impact that closed-loop control and adaptation has on behaviour is significant, and should not be ignored entirely in neuromechanical models. Our open-source framework serves as a virtual prototyping platform for arm-worn EMG interfaces.

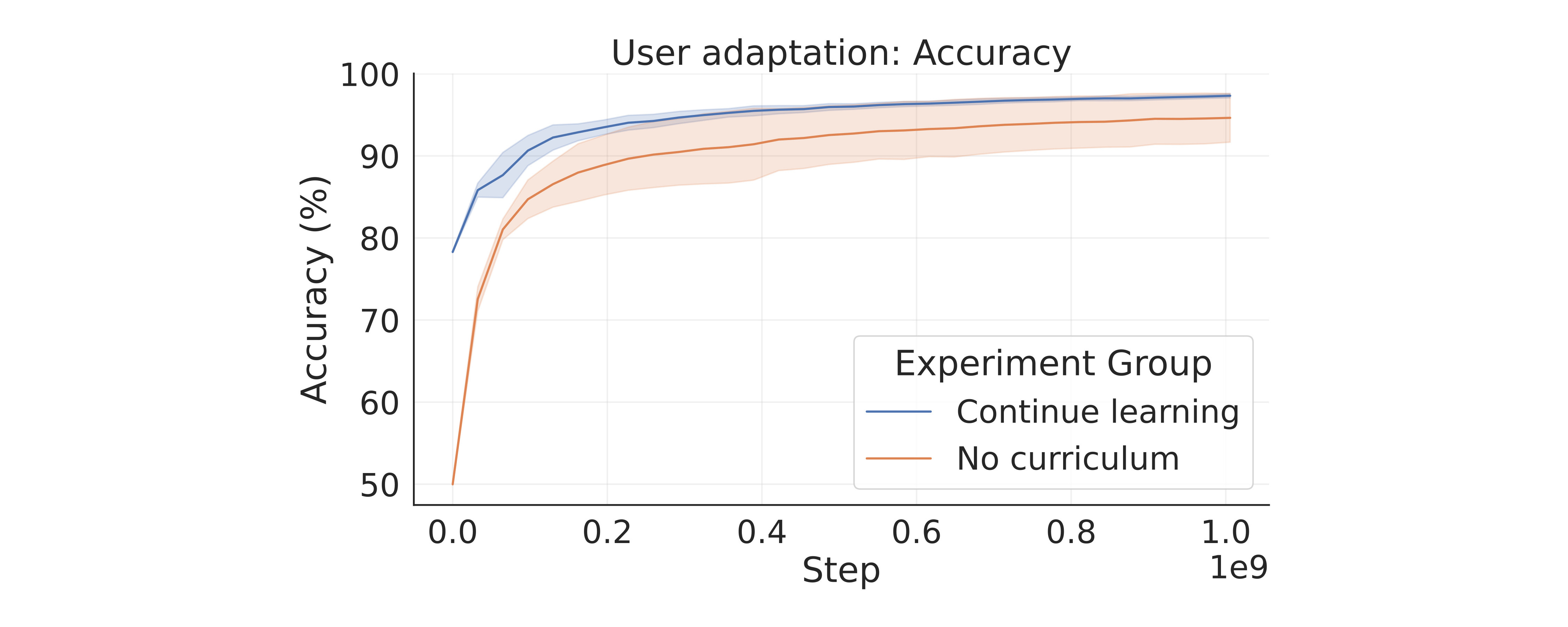

Accuracy of the pretrained decoder as the virtual user learns to adapt behaviour to improve over time. Average accuracy across the five fingers with two classes (flexed and extended) shown. Continuing learning after the gesturing task is advantageous, but learning to use the decoder without prior learning is also possible.

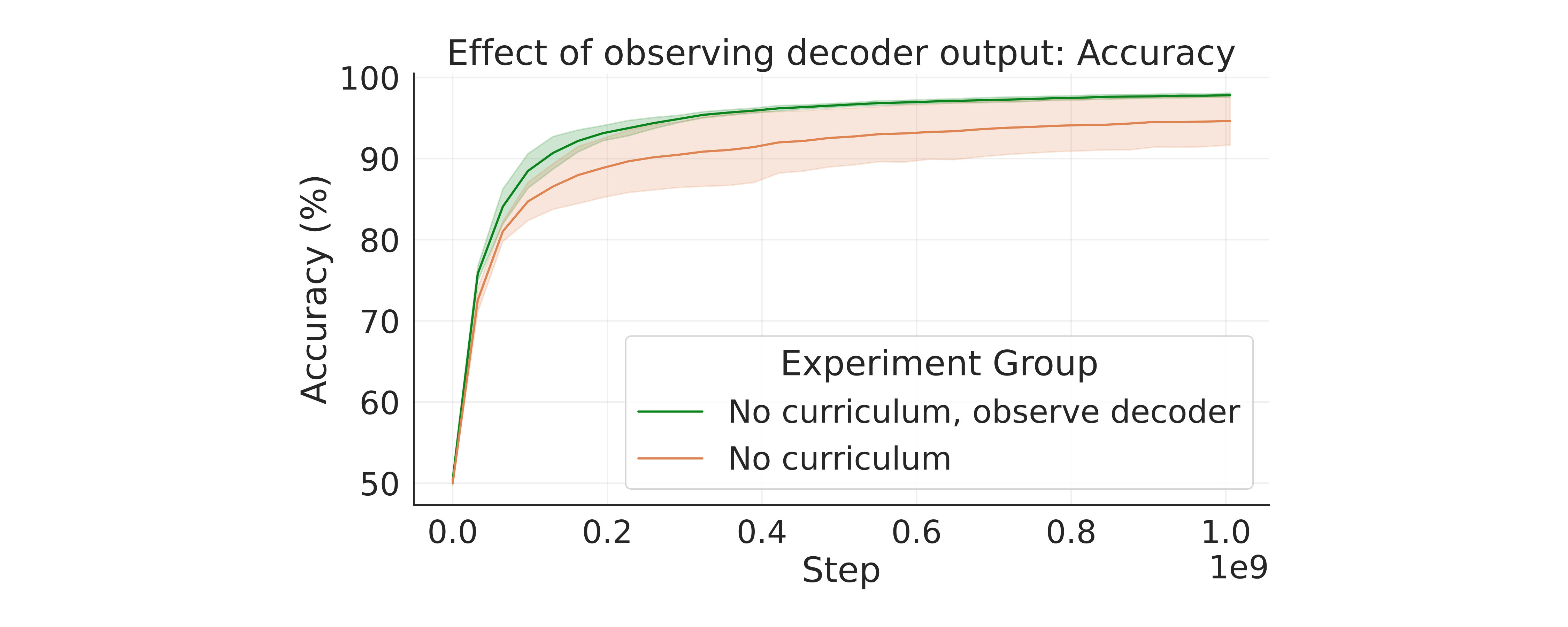

By extending the observation space to inlcude the decoder output we reinforce the closed-loop nature of the task, and more skilled use is learnt even without gesturing training.

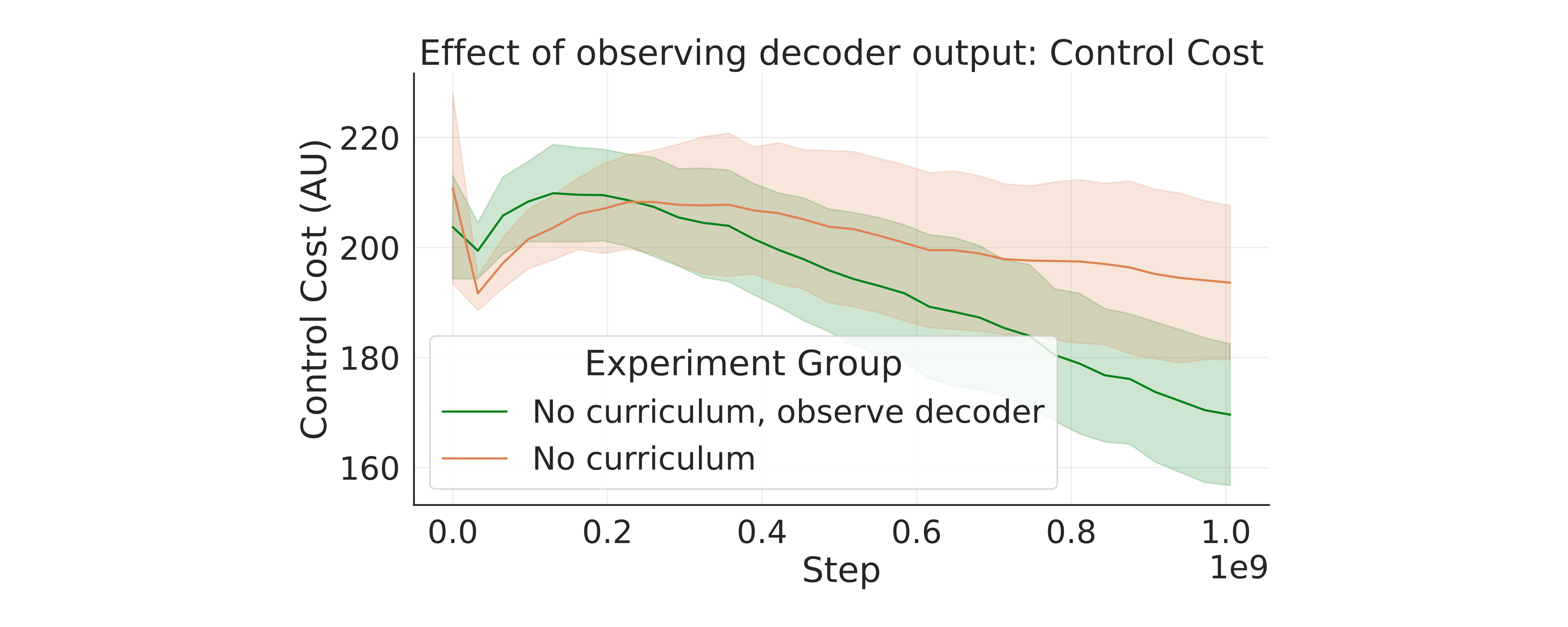

The amount of muscle effort generated by the agent changes over the course of adaptation, and closed-loop feedback also enables higher accuracy control with less effort.

Acknowledgements

This work was funded by the Imperial-Meta Wearable Neural Interfaces Research Centre. We would like to express our thanks to Claudia Sabatini and Dimitrios Chalatsis for the valuable discussions during this study.
